Protecting and maintaining the quality of stored fuels is not what it used to be. Today's stored fuels require a multi-pronged approach for their case, that can involve testing (to tell us what the fuel's health or problem is), mechanical processing (i.e. filtering), and chemical treatment with the right kind of chemicals.
Certain kinds of tests can be done by the user in the field while other essential tests (such as the ASTM tests in D-950) are done in a certified laboratory. Not all fuels require every kind of test. But some tests are vital to understanding the true state of your stored fuel as well as giving you the benefit of a define problem so you know what you need to do.
Stored fuels often need chemical treatments to either help solve existing problems or prevent those problems from making things worse. Not every fuel needs every kind of chemical treatment, but the most commonly recommended kinds might be:

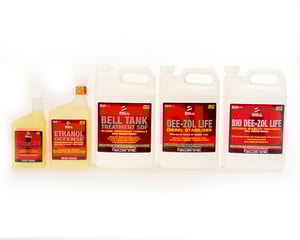

Fuel Stabilizer - Dee-Zol Life
Sludge Dispersant - Bell Tank Treatment SDF
Water Absorber - DFS Plus
Emulsion-Resolving Treatments - Demulsifier EB and Tank Treatment EB
It's also important to recognize that chemical treatments or additives cannot solve every kind of problem. Which is why, in many cases, mechanical processing may be necessary.
In stored fuels that have developed problems involving water and sediment development, mechanical fuel processings (i.e. fuel filtration or fuel polishing) becomes an important step. Like chemical fuel additive treatments, mechanical processing directly helps solve some issues, but has its own limitations on what it can and cannot do.

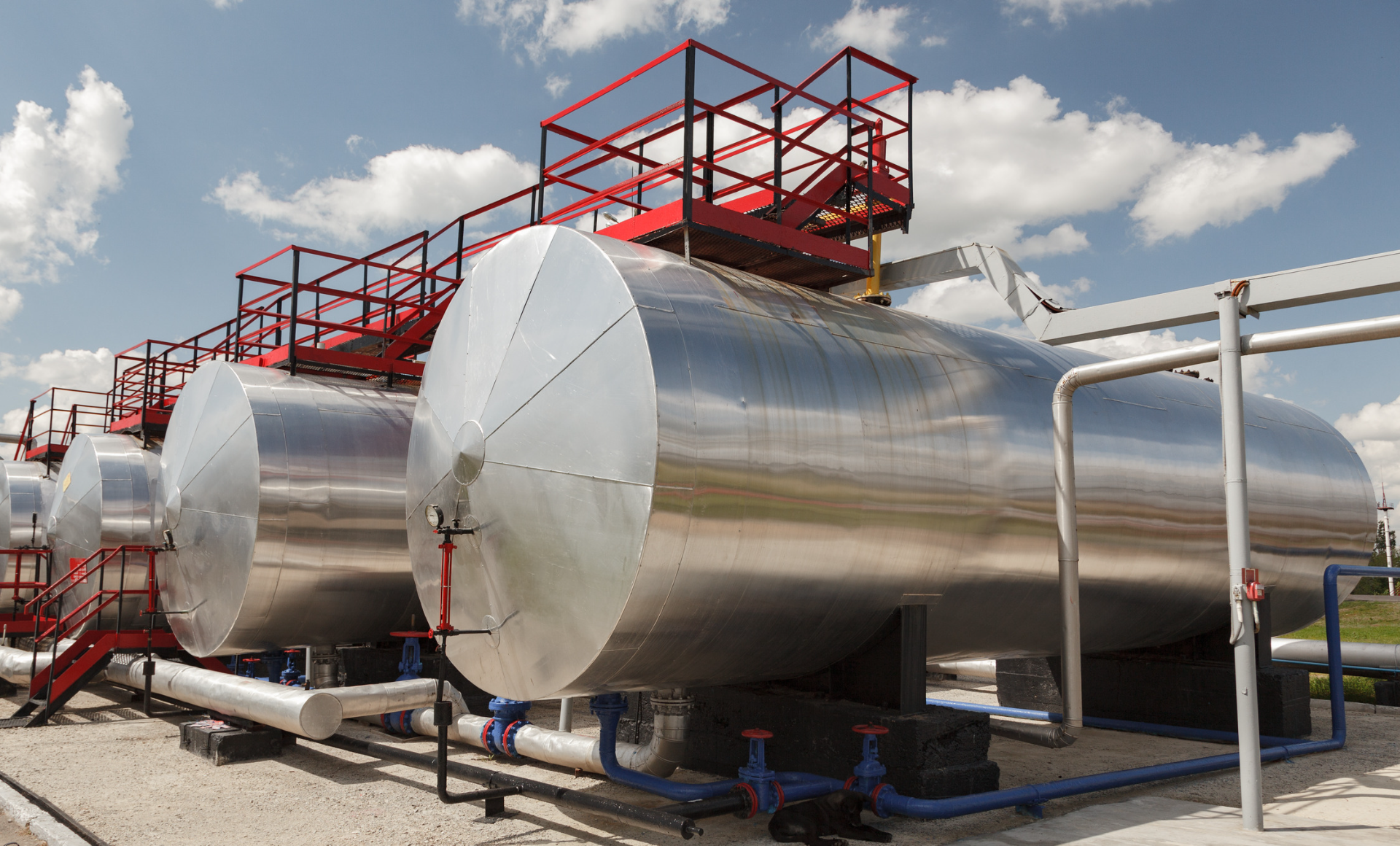

For those in charge of buying, storing, and maintaining fuels, it’s essential to ensure that the quality of that stored fuel to be used in an emergency is protected and maintained. Good quality stored fuel combusts properly without black smoke and adverse emissions and does not leave deposits inside of the engine, and the engines themselves run as well as they are designed to do.
These considerations are vital because if stored fuels for emergency purposes are not ready for use at the exact needed time, there can be big problems as a result. When a hurricane hits in Florida or a tornado happens in the south of the Midwest, public and private sector entities assume the emergency fuels set aside for these situations will perform their roles to power generators, emergency management equipment, and other vehicles that perform the duties called for in the relevant emergency management action plan.
The same scenario applies to stored fuels powering essential vehicles and equipment in non-emergency situations. The expectation is that these fuels will function like they’re supposed to. The expectation is not that generators on their monthly load-test will sputter and shut down at only 50% load.
Whatever kind of fuel you use in whatever capacity, there are best practices that you, as a fuel manager, can do to ensure that the stored fuel is going to continue to be ready to use when you need it the most. So let's take a deeper dive in that.
No matter where you use it, if the fuel quality is not within specification, then the vehicle or engine is not going to run properly or it may not even run at all when it is needed most. This fuel quality deficit is really caused by what ends up in the fuel that does not burn as well as the fuel itself. When you hear about fuel oxidation, gums, varnishes, and fuel sludge, these are parts
of the diesel fuel mixture that used to be soluble and in solution with the fuel blend, but which have reacted to form substances that are heavy enough to fall out as sludge.
The marketplace offers a couple of chemical and mechanical solutions to help with fuel stability deficits. Fuel stability treatments are preventive treatments that keep these substances from forming, prolonging the usable life of the fuel. Fuel "polishing" (fuel filtration) is a reactive (but sometimes necessary) mechanical step that provides value by removing existing water, sludge, and asphaltene dropout from the fuel so that the fuel burns as it’s supposed to.
Both of these steps offer value points to the fuel professional worth considering, especially as part of a fuel preventive maintenance (fuel PM) program.
Today’s diesel fuel is not exactly like the diesel fuel that was in use decades ago. The big difference between diesel fuels now and diesel fuels then is the level of sulfur allowed in the diesel fuel. From 1992 to 2007, regulations lowered the max. sulfur level of diesel fuel from 5,000 ppm to just 15 ppm. That’s a 99.7% reduction in fifteen years.
What does this mean for the diesel fuel stored for use in emergencies and other situations? Many aren’t aware that the removal of sulfur from diesel fuel makes that diesel fuel far more likely to have bacteria, fungus, and microbial infestation problems emerge in storage. Removing the sulfur itself is part of the reason, along with the fact that the refinery process used to remove the sulfur also changed other components of the fuel that, in total, give us diesel fuel today that has much less resistance to microbial growth than in years past.
Fuel management professionals now find that they're far more likely to have a microbial infestation problem than in the past.
This microbial danger becomes compounded when you add water accumulation in storage tanks, resulting in the perfect recipe for the destruction of stored fuel quality.
Water plays several roles in the destruction of stored fuel quality. The accumulated water builds up in fuel storage tanks that are vented to the outside. Temperature changes from day to night cause condensation to develop on the inside of the storage tanks; this condensed water rolls down the sides of the tank and sinks to the bottom of the diesel fuel, because water is heavier than diesel fuel.
Every fuel management professional knows it is common to find at least some water sitting at the bottom of every storage tank. This water enhances the possibility of microbial growth in that storage tank. Bacteria, fungi, and microbes only need a small layer of free water interfacing with a layer of diesel fuel in order to get all the things that they need to grow and thrive inside of a fuel storage tank. Any time you have a layer of water in a storage tank, you have the enhanced potential for microbe growth and problems.
Another factor water plays with respect to stored fuel quality is its role in the chemical breakdown of diesel fuel. Diesel fuel can undergo chemical breakdown over time by a number of avenues. Microbes that infest storage tanks produce acids and corrosive substances as a result of their biological processes. These biological byproducts accelerate the breakdown of the quality of the diesel fuel just as you would expect an acid to do. They’re also strongly associated with corrosion damage to storage tanks themselves.
Most fuel storage professionals have a protocol to control water in tanks. There are water coalescers, filters, and centrifuges that can allow for the removal of significant amounts of water from tanks. There are also highly effective fuel treatment options that will absorb significant amounts of water and cause it to be locked into the diesel fuel for combustion. Alternatively,
there are demulsifier treatments that can resolve fuel-water emulsions and enable more effective free water removal.
Water removal is also an essential element of a quality fuel & tank service program that typically involves the removal of excess water in storage tanks coupled with the addition of both water controllers and biocide treatments to stop microbial problems before they start.
The blending of up to 5% biodiesel content into diesel fuel is now common practice across the country. This means virtually every diesel fuel user has been using biodiesel, whether they realize it or not.
While biodiesel fuels have some positive attributes (high lubricity, being a renewable fuel), their inclusion in the diesel fuel supply does not help with fuel stability problems. To make a long story short, even low levels of biodiesel content increase microbial problems in stored fuel because microbes love to feast on it. In addition, biodiesel is hygroscopic, even changing the amount of water that diesel fuel can absorb before it emulsifies or becomes free water which microbes love.
All of this means even low levels of biodiesel content can accelerate water accumulation in storage tanks and accelerate the problems that come with this in stored fuels.
Today’s biodiesel blends and regular diesel fuels are prone to what is known as oxidative stability breakdown. They are less able to resist the chemical reactions that come from every day exposure to water, oxygen, light or heat, and bacterial byproducts - all of which are known to chemically deteriorate and break apart diesel fuel and biodiesel blends. They all contribute to either providing the fundamental ingredients for the chemical reactions that cause a fuel’s break down, or the acceleration of the oxidative breakdown of the fuel quality over time.
Exposure to water and oxygen in the air provides oxygen that is the essential ingredient in oxidation and hydrolysis chemical reactions. These are the chemical reactions that attack diesel fuel molecules, break them apart and turn them from stable molecules to unstable molecules that want to form sludge and deposits in stored fuel. Biological byproducts of bacteria and fungus in fuel tanks also lead to tank corrosion and the breakdown of stored fuel in the tank because of their acidic nature. Exposure to heat provides the energy catalyst needed to make sure that these harmful chemical reactions actually happen at a faster rate in the fuel.
Best practice fuel preventive maintenance practices will try to take all of this into account. Little can be done to prevent light and heat exposure. But water and bacterial presence can be successfully addressed by a good fuel and tank housekeeping program. Some agencies have these programs in place, while others utilize the expertise of partners in the industry to stay on top of the stored fuel quality for them.
Ethanol blends, in the grand history of fuel storage use for emergency management, are a relatively new player on the horizon.
Ethanol in gasoline became common around 2005 and 2006 after the phaseout of MTBE (which used to be added as an oxygenate and an octane improver) because of fears of groundwater contamination. Ethanol alcohol became the new oxygenate of choice across the country. Oxygenates add more oxygen to a gasoline mixture, helping the gasoline to burn with fewer harmful emissions that affect urban air quality.
Ethanol blends have a much more compressed storage life than diesel fuels do, which makes them more difficult to store for backup use. They attract water quite easily, a big problem for ethanol fuel blends when stored for any significant length of time. This water accelerates oxidation and breakdown of ethanol fuels, contributes to the same type of microbial infestation problems in ethanol blends, and causes phase separation of the fuel. Stored ethanol-gasoline that has phase-separated is going to be useless – its octane rating and combustibility will be shot and there’s no way to put it back together again.
The only solution to protecting stored ethanol gasoline is to make sure the fuel doesn’t reach that point.
When it comes to maintaining stored fuel and protecting its quality for the needed time, the best practices will fall into two camps – chemical and mechanical practices. Both camps have their value and also their limitations. It’s important to realize what these are.
"Chemical practices" center on adding effective chemical treatments to the stored fuel to either fix an existing problem or prevent a possible future problem from developing. The important chemical treatments to consider are fuel stabilizers, water controllers, biocides, and sludge dispersants.
Fuel stabilizers are typically antioxidant packages that prevent the chemical reactions from starting that cause fuel quality to break down over time. Oxidative chemical reactions in diesel fuel are a chain reaction; this means that the process is started with a few chemical reactions that lead to more chemical reactions, eventually leading to a widespread breakdown of that diesel fuel. Oxidative fuel stability ingredients, like Bell Performance Dee-Zol Life, function by stopping these first chemical reactions in the process. If you stop the first chemical reactions in the chain reaction, you stop the rest of the chain reaction and, in this case, this means preserving the fuel quality of the stored diesel fuel.
Emulsifying or water-suspending formulations are the most common chemistries found in the marketplace in additives for helping get rid of free water in a tank. But those may not always be right for your situation, especially when dealing with fuel that may be used for sensitive common rail diesel engines.
If the fuel has an emulsion or haziness that cannot be resolved with a water dissolver chemistry (DFS Plus), the solution is to use a demulsifier formulation like Demulsifier EB or Tank Treatment EB. Demulsifiers are highly effective at breaking fuel-water emulsions to allow entrained or emulsified water to separate and drop out from diesel fuel and collect at the bottom of the tank as free water, where it can be more easily removed.
Fixing microbial contamination in stored fuels requires a biocide, making it an essential weapon in the fuel manager’s arsenal. While the available options are not as widespread as other types of fuel treatments (due to being highly regulated), some biocide chemistries are better than others. Bellicide from Bell Performance is a highly effective thiocyanate biocide chemistry that offers industry-leading broad-spectrum effectiveness. ClearKill from Bell Performance is an alternative MBO biocide chemistry that also offers broad spectrum effectiveness at eliminating microbial contamination while also offering two key features that other biocides don’t:
Filming amine corrosion protection, to protect against the damage caused by microbially induced corrosion. This is the same type of protections recommended by the EPA to prevent corrosion damage to surfaces from microbes.
Sulfur-free, meaning it will not add any sulfur to sensitive fuels like ultra-low sulfur diesel (making it an excellent choice here are two Bell Performance offers two biocide solutions that compare favorably to Bellicide is a dual-phase biocide that works in both the petroleum and the water phases of stored fuel, including gasoline, ethanol, diesel, and biodiesel.
Sludge and biomass dispersants (Bell Tank Treatment SDF) have recently come to the forefront of best practices because they can keep stored fuel tanks clean of problematic sludge buildup while also dispersing microbial biomass formations. This enables the storage tanks to stay cleaner while enhancing the effectiveness of any biocide that is used. Tank Treatment SDF also provides a corrosion inhibition function by protecting tank surfaces in contact with treated fuel from attack by corrosive elements in the fuel.
All this having been said, chemical "fuel additives" cannot do everything, despite what some fuel additive companies tell you. The most relevant limitations that should be considered are: Water controllers can effectively control limited amounts of water but are not designed to make large amounts of water disappear.
Chemical fuel treatments also need to be added correctly. Fuel stabilizers need to be added when the fuel is fresh before signs of instability become apparent. Once fuel sludge has developed in fuel and its storage tank, a stabilizer will not put it back together again. Biocides and sludge dispersants need to be added and incorporated into the fuel through fuel circulation, to allow maximum contact between the chemical treatment and what it’s supposed to be remediating. It is rarely effective enough to add these types of treatments on top of the fuel and simply let them diffuse throughout the entire fuel body.
Now that the limitations of chemical fuel additives (they can’t do everything) have been brought to light, we consider that mechanical fuel treatment processes have a great deal of value in filling in the gaps to protect stored fuel quality. "Mechanical processes" is another name for fuel polishing.
A good mechanical process will involve the use of filters and water separators to mechanically remove particulates and water from the fuel and its storage tank. Mechanical filtration is very useful for taking fuel that is out-of-spec and bringing it back into specification – a great advantage for facilities that are legally required to keep their backup fuel ready for emergency use. Mechanical processes are also the best way to handle the sizable amounts of water that many fuel storage tanks accumulate over time if they are not diligently watched.
The biggest limitation that fuel filtration and similar processes have in protecting stored fuel quality are that they do nothing to keep fuel problems from coming back. Fuel polishing and filtration remove from the fuel what’s not supposed to be there. But after the process is concluded, all bets are off.
If you manage stored fuel of some type, you may even have had this scenario play out where you are. You engage the services of a fuel polisher, who may come out and do an admirable job of cleaning up darkened fuel and turning it clean and bright, just as it is supposed to be. Yet, once the mechanical process is concluded, there’s nothing to stop the fuel from darkening again. Or developing a repeat microbe problem within a couple of months. Mechanical fuel processing addresses current problems, it does not prevent future ones.
Given the limitations of either side, the best practice recommendation for protecting stored fuel is to use a combination of both methods.
The best practice is to start with the use of periodic mechanical fuel and tank servicing to clean up and remove existing water, sludge, asphaltene dropout and microbial growth. This is combined with the addition of quality chemical fuel treatments that both enhance the effectiveness of fuel polishing (water controllers to scavenge leftover water, sludge dispersants to remove hard-to-reach asphaltene collections) and prevent these problems from returning (biocides, fuel stabilizers) for long periods of time than would be possible without their use.
Not to be left out of the discussion, it is important to also incorporate periodic fuel testing among the recommended best practices for protecting stored fuel quality. Fuel testing gives an essential diagnostic picture of the condition of the fuel, without which, it is much more difficult to compile an accurate picture of how healthy the stored fuel is and to know which specific fuel quality problems need the most attention.
The idea of fuel testing can be, for many fuels professionals, both daunting and confusing. Unless they’re under the directives of specific testing requirements by a regulatory agency, it may be difficult to know which of the many tests for stored fuel are good ideas and which are not needed. It is not uncommon at all to throw money away on tests that don’t mean what we think they mean if you don’t know which ones are really needed and which are not.
Effective fuel maintenance practices will look to incorporate tests like the cetane index (to verify the stored fuel’s cetane rating), water and sediment content (to document levels of impurities), and accelerated stability. In addition, microbial content monitoring can be indispensable in both documenting if microbial contamination exists in fuel and in predicting whether microbial problems may be on the horizon for the fuel in the near future.
All of these aforementioned best practices are also essential aspects of fuel preventive maintenance programs that are recommended for anyone with a substantial stake in ensuring their stored fuel quality is protected. But many of the entities that need to do this the most find themselves with neither the time nor the human capital resources (personnel) to effectively implement such an important program. If you find yourself in that boat, it would be a good idea to partner with a fuel & tank services company that can bring all of these best practice recommendations under your umbrella. These partners will typically handle all of the testing, assessment, remediation, and preventive treatment of your stored fuels and storage tanks. And some of them will also provide certain guarantees on the ongoing condition of your stored fuel that’s under their care.
Engaging the expertise of a fuel & tank services partner may be something to consider if you need to know your stored fuel is protected for future use but you feel you may be lacking the time and money needed to properly ensure this. If this sounds like you, Bell Fuel & Tank Services provides these essential fuel PM elements that may be worth your consideration.
